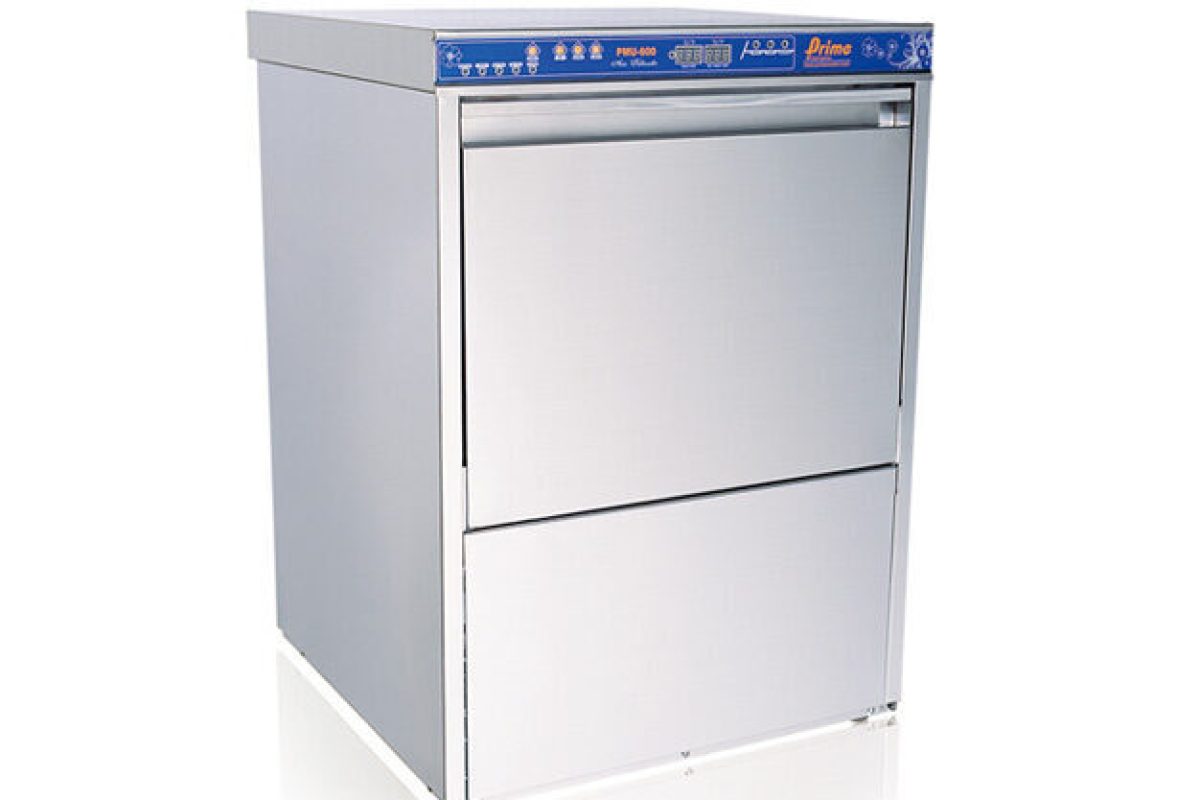

Under-counter
PMUE-600
Feature
- Compact size : As the size is compact, it can be efficiently used in narrow kitchens.
- Various washing programs : For efficient washing suited to purpose and objects to be washed, 7 washing programs are provided.
- Solid exchangeable washing arm : It enables fine washing with high-temperature water, water strength, washing angle, detergent quantity etc.
- Economical washing : Using high-tech equipment, economical washing is possible with minimal electricity, water, detergent etc.
- Built-in composition of detergent supply device : As detergent supply device is basically built into the product, extra installation is not needed andproduct maintenance management is easier than existing products of other companies.
Spec

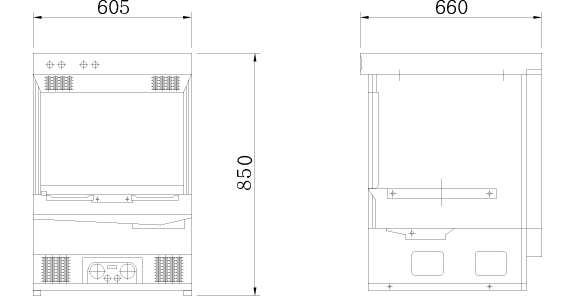

| MODEL | Dimension (L W H) | Capacity (Rack/HR) | Washing Cycle (Min) | Tank Filling (Liter) | Electric Capa (KW) | Power Source (Φ1) |
|---|---|---|---|---|---|---|
| PMUE-600 | 605×660×850 ㎜ | 30-80 | 0.5-3.5 | 6 | 4.8 | 220-240V, 50/60HZ 100-120V, 50/60HZ |
| ※ Features and specifications are subject to change without prior notification. | ||||||
Competitiveness
Under-counter
01 The Korea’s First and only designed Two Side Door what maximization of the convenience of cleaning and maintenance
- The Korea’s First and only designed two side door dishwasher manufacture by Prime’s Unique Technology.
- With unique Front and rear door choice in Korea, leaving no unwashed area, cleansing and maintenance & repair are easy and user’s convenience is enhanced.
- Improved durability and compatibility with a simple appearance.
02 High efficiency pump motor with low energy loss and high efficiency
- 20-30% less energy loss than standard motors.
- Up to 10% higher energy efficiency and CO2 emission reduction.
- To prolong motor life with the use superior materials and lower the motor temperature.
- Reduce ventilation noise and electronic noise to reduce 3-8dB compared to standard motor.
- Used Stainless steel Housing for sanitary products without any rust.
03 Superior space utilization through built-in steam and water pipes
- Enhance the beauty and maximize utilization of external space by installing steam and water pipe inside.
- Prevent corrosion by using all stainless steel.
- Improved convenience of maintenance by designing parts clearly when opening the cover.
04 Special Acetyl Conveyor Finger with increased durability and reduced square area
- Special acetyl material for maximum durability.
- Increased cleaning efficiency with 77mm pitch intervals.
- With 12 line fingers, it is possible to fix the many trays or dishes completely.
- Prevention of conveyor weight weighting and detachment through the round stainless steel bar between the fingers.
05 Permanently usable stainless steel washing nozzle
- Made of stainless steel for maximum durability.
- Application Jet injection embossing nozzle.
- Can be cleaned up to detaily evenif small crevices.
- Clean the inside of the nozzle by removing the end cap.
- Reduced operating expenses due to reduced electricity and water usage.
06 Frost protection system that can be safely used in winter
- All water can be removed by pushing the remaining water in the product with steam pressure.
- Can be used for long time in winter.
- Reduced maintenance cost.
07 Maximum durability by Stainless steel rinse nozzle
- Permanent stainless steel material.
- It is sanitary because there is no corrosion even after long use.
- Reduced maintenance cost because no after service or maintenance is needed.
08 Enhanced operator convenience with Foldable workbench
- Unfold and fix freely to place the purged material.
- Improve convenience and space utilization.
09 Steam booster boasts outstanding durability
- Hot water can be used instantly or continuously by hot water up to 92 ℃.
- High efficiency performance over -100,000 ㎈ / hr.
- Prevention of damage by hammering.
- Automatic steam discharge device with overpressure.
- It is corrosion-free and sanitary using stainless steel inside and outside.
10 Safety system considering work environment
- Prevention of burns or skin diseases by attaching a safety sensor that stops the washing liquid and water injection when the door is opened.
- Attach front and rear emergency button to stop operation in case of emergency and ensure safety of users and products.
- Safety device is attached to the end of the dishwasher to prevent the dishwasher from being taken out, the operation is automatically stopped to protect the dishwasher and the dishwasher from damage.
11 Two-stage manure construction for best cleaning power
- Triangular and cylindrical structure effectively removes a large amount of residue.
- It prevents machine breakdown and can be used for a long time.
- No distortion due to triangular structure.
- Easy to clean and protect the washing pump motor.
12 Improved maintenance convenience with Electric circuit type control panel
- t is displayed on the control panel when an error occurs due to applying the electric circuit method, and it is easy to check whether there is an abnormality
- Can be maintained quickly and inexpensively during maintenance using a common parts.
13 Three-step steam preventer to prevent over-discharge of steam
- Three-step steam preventer to prevent from used and excessive steam being discharged to the outside.
- Effectively suppressing the temperature rise in the workspace and dining area.
14 Energy Saving to reuse exhausted water vapor
- Reduces energy by collecting heat of hot steam and using it for cold water supply.
- Preventing the increase of work space temperature.
- Improve worker’s work environment.
